CWS VersaFiller P8EBFTY

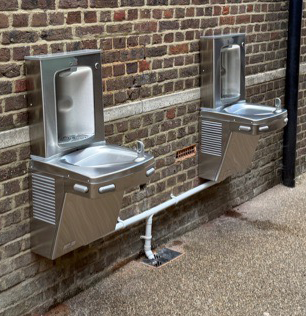

The CWS VersaFiller P8EBFTY is a fully contactless, high-performance bottle refill station for public buildings, gyms, sports complexes, hospitals, schools, and offices.

This surface-mounted unit combines a bottle filler with a drinking fountain, both activated via infrared sensors for maximum hygiene, while a built-in bottle counter promotes sustainability by tracking reusable refills.

Freshield antimicrobial protection minimises microbial growth, and an optional Quasar UVC-LED neutralises 99.99% of pathogens at the point of dispense

CWS VersaFiller P8EBFTY
Can we help?
-

Call us on:

01580 211 648

or complete our enquiry form and we'll get right back to you:

Product Type
Bottle Filling Stations
Suitable for
Offices & Workplaces
Schools & Universities
Leisure, Gym & Sports
Hospitality & Catering
High Traffic Areas
Unit Type
Wall mounted
Features
  • Contactless, infrared sensor activation for both bottle filler and drinking fountains
  • 30-second automatic shut-off for the bottle filler
  • Integrated bottle counter to encourage reusable bottle use
  • Freshield antimicrobial technology for enhanced hygiene
  • Optional Quasar UVC-LED disinfection for additional safety
  • Built-in drain with removable drip tray for easy maintenance
  • Durable chassis with antimicrobial ABS plastic and brushed stainless steel
  • Heavy-duty galvanised steel exterior for long-term performance
Available as
  • Refrigerated model
  • Refrigerated model with Quasar UVC-LED disinfection
  • Manual operation also available
Options
  • Green Filter for additional water filtration
  • Custom branding and unit personalisation
Dimensions
  • Height: 960 mm
  • Width: 413 mm
  • Depth: 473 mm
  • Alcove Height: 290 mm
  • Net Weight: 16 kg
Performance data
  • Activation: Contactless infrared sensor
  • Sensor Coverage: Up to 5 cm
  • Cooling Performance: 60 LPH (Rated Capacity & Base Rate at 10°C in 21°C ambient temperature)
  • Power Supply: 220-240V, 50/60 Hz
  • Full Load Amps: 2.2A
  • Rated Watts: 450 W
  • Energy System: Refrigeration activates only when in use or when water temperature increases during standby periods
Certifications & Warranty
  • ANSI/NSF 61, CABO/ANSI A117.1, ADA, CE (LVD, EMC, RoHS), WRAS
  • 1-Year Warranty

The CWS VersaFiller P8EBFTY is the ideal choice for high-traffic environments requiring a hygienic, energy-efficient, and sustainable hydration solution.

DOWNLOADS
Technical sheet562.88 KB
